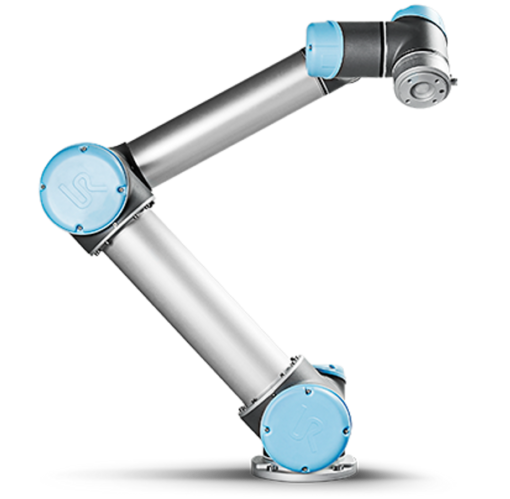

6-Axis robot arm with a working radius of 850 mm
This small to medium-sized cobot is ideal for when you plan on automating low-weight processing tasks. Thanks to its size, you can install the UR5 easily within your existing work floor.
The CB3-series precedes the e-Series and have been available in the market since 2008. The series consists of three cobots: the UR3, UR5, and UR10, all of which have enabled businesses globally to automate utilizing industrial, collaborative robots.
SPECIFICATION
Payload: 5 kg
Reach: 850 mm
Degrees of freedom: 6 rotating joints
Repeatability: ±0.1 mm
Ambient temperature range: 0-50°C
Power consumption: Min 90W, Typical 150W, Max 325W
IP classification: IP54
ISO Class Cleanroom: 5
Noise: 72dB(A)
Robot mounting: Any
Estimated life at rated loads: 35,000 hours
I/O ports (Control Box): Digital in 16, Digital out 16, Analog in 2, Analog out 2
I/O power supply in tool: 12 V/24 V 600 mA in tool
Footprint: Ø 149mm
Weight with cable: 18,4 kg
Power source: 100-240 VAC, 50-60 Hz
