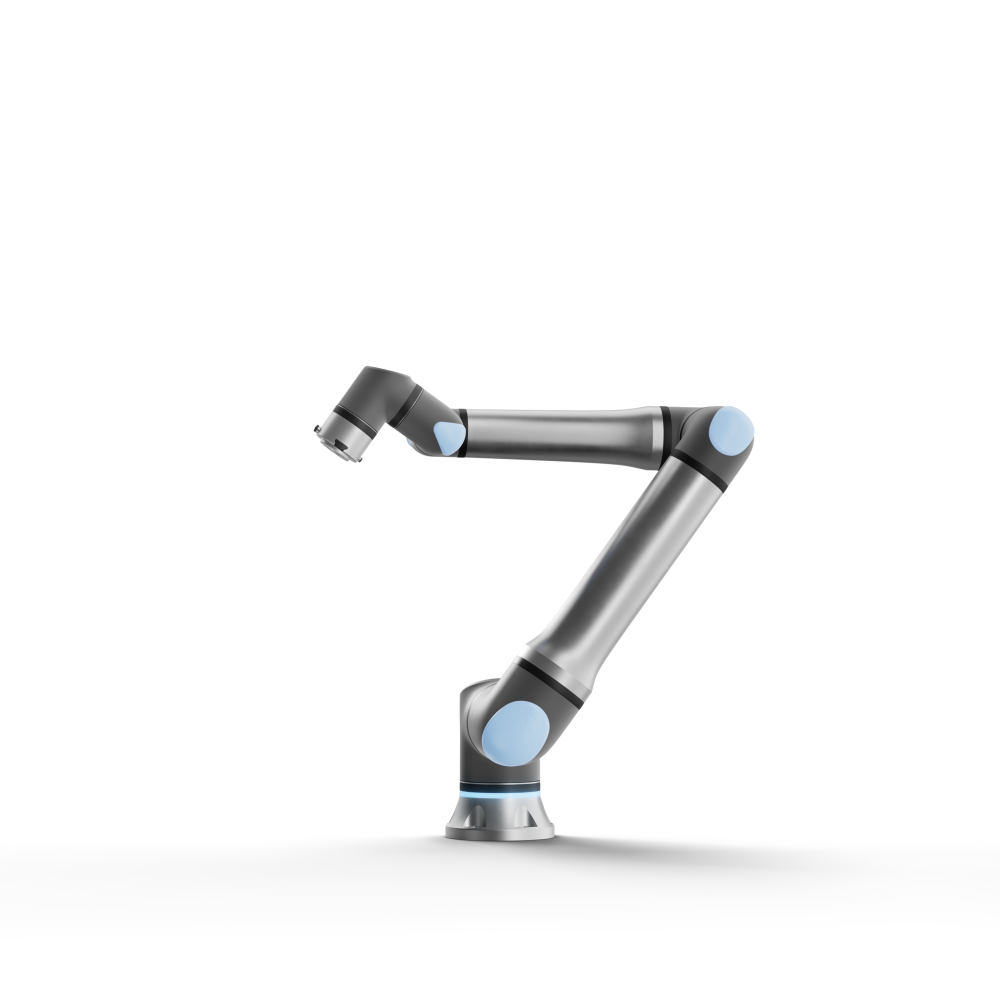

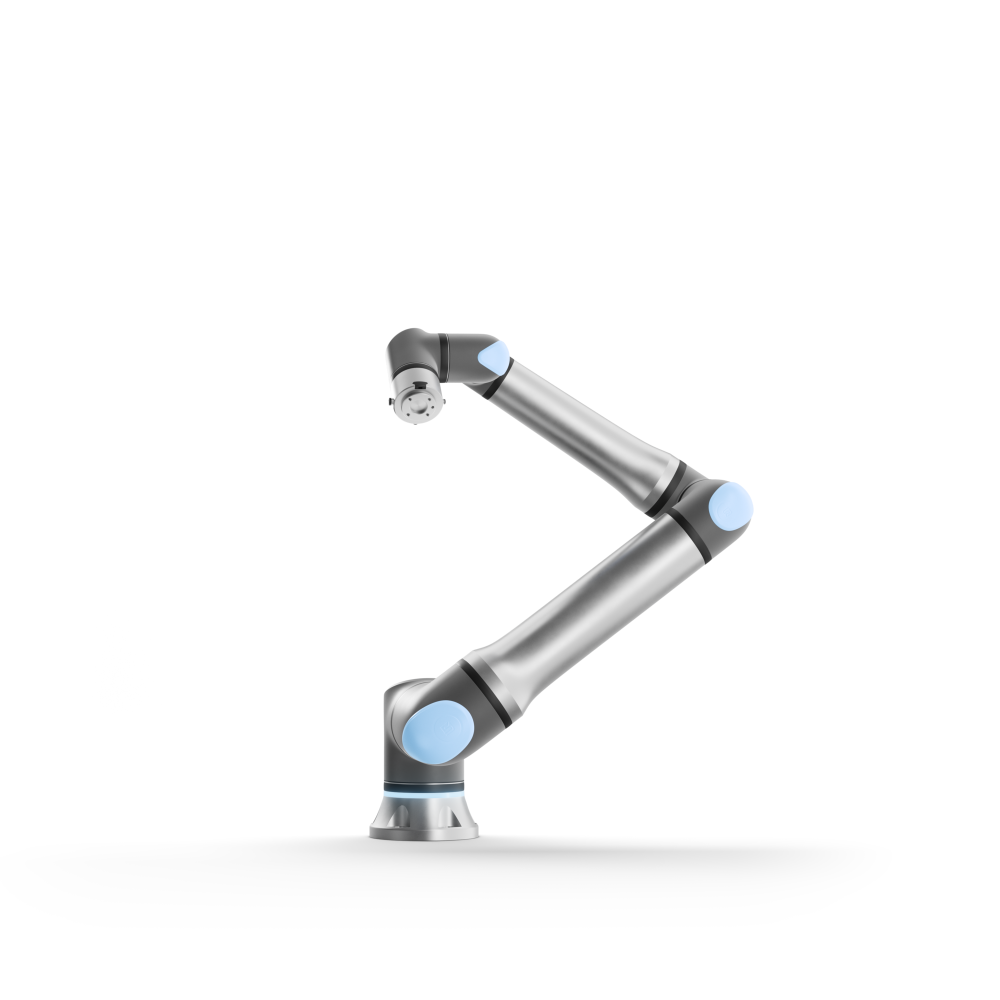

UR17g-1300

€41 290 – €43 880

The g-Series is Universal Robots’ 7th-generation robot family. In addition to a completely new and future-proof pendant and control box with new features, the robot also offers increased power through its Tool I/O, Gigabit Ethernet, and the option to add a Smart Panel as an accessory.
The new g-Series tool flange enables the vision and sensing needed for AI models to run in real-time with the robot, delivering data, power, and safety directly to the tool flange. This eliminates cabling complexity and makes it easier to connect cameras and high-bandwidth sensors, which is critical to advanced automation and physical AI deployments.
Artikelnr: Inte tillgänglig Kategori:

UR17g-1300 7th generation arms, designed for industry with built-in connectivity

A compact, lightweight form factor featuring g-Series tool-flange connectivity — 1 Gb Ethernet and 24/48 V, 3A continuous power at the end of arm — for direct sensor and camera integration. Industrial-grade design keeps cycle times tight as task complexity grows.

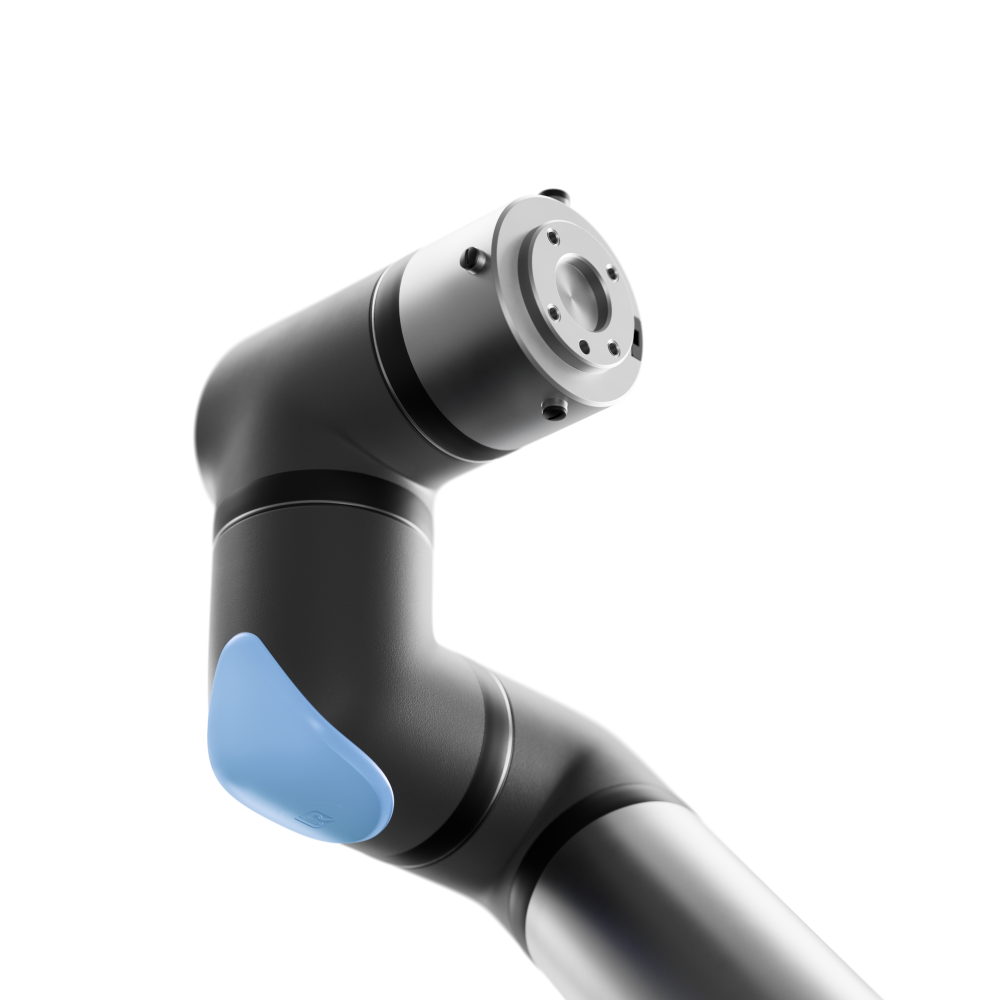

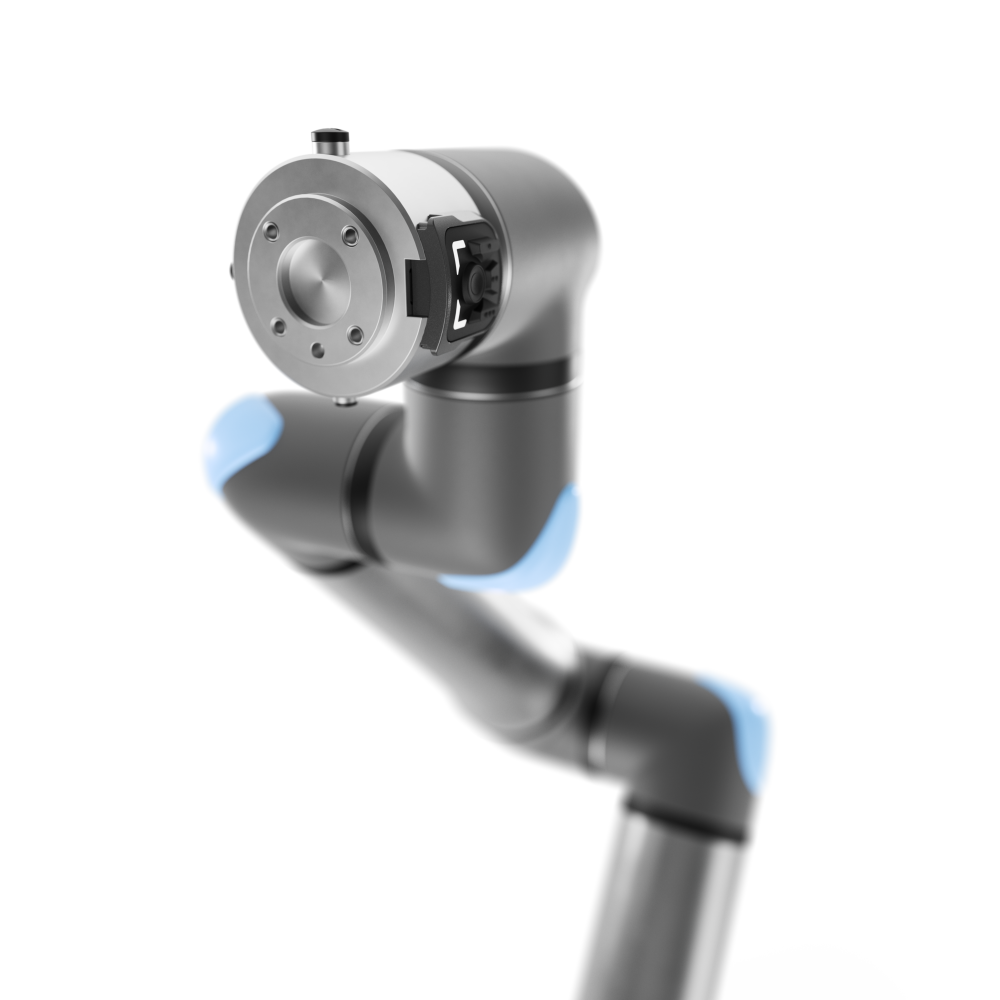

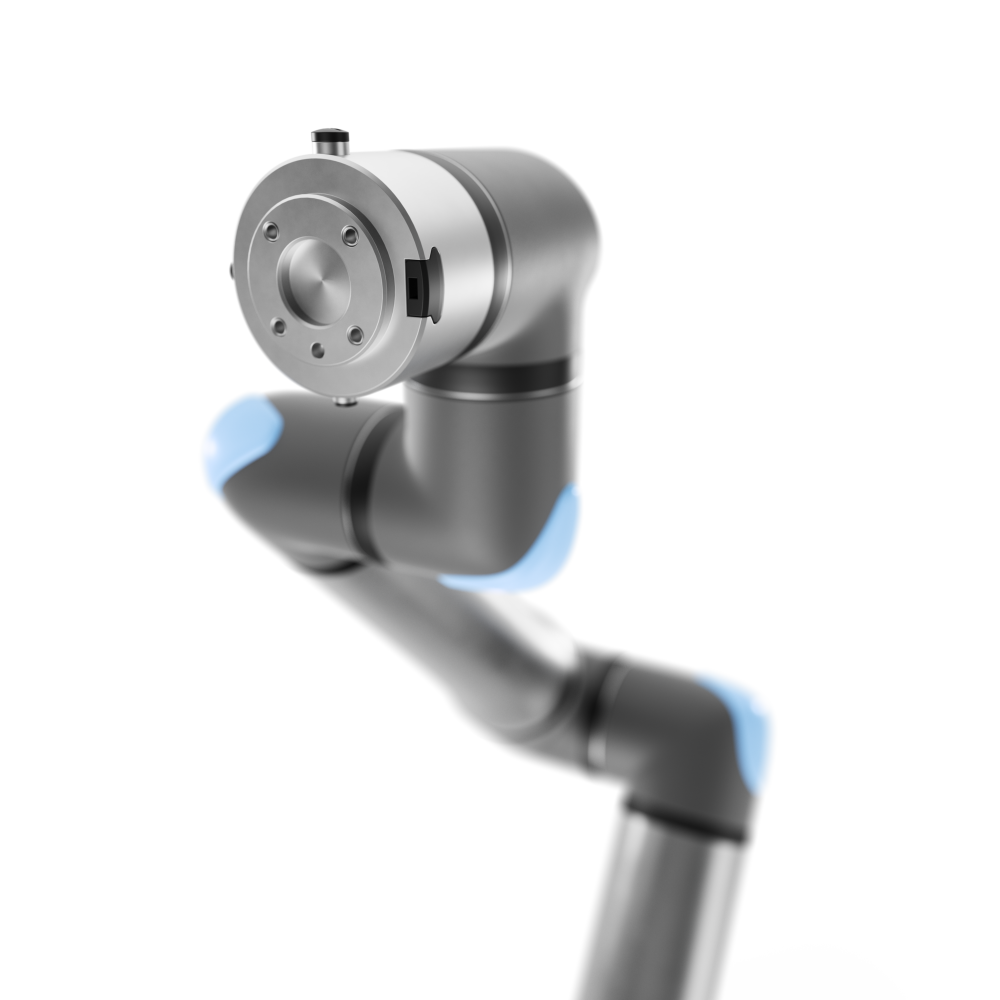

Enhanced tool flange
Integrated 1 Gb Ethernet, 24 V / 48 V power (5 A peak, 3 A continuous) and safety-rated inputs at the g-Series tool flange enable cameras, sensors, and higher-power EOATs while eliminating external cabling. M8 compatibility preserves existing ecosystem investments.



Environmental rating: IP65
All g-Series robots are IP65 rated for industrial production environments, with fewer components and an enclosed joint design for improved reliability.

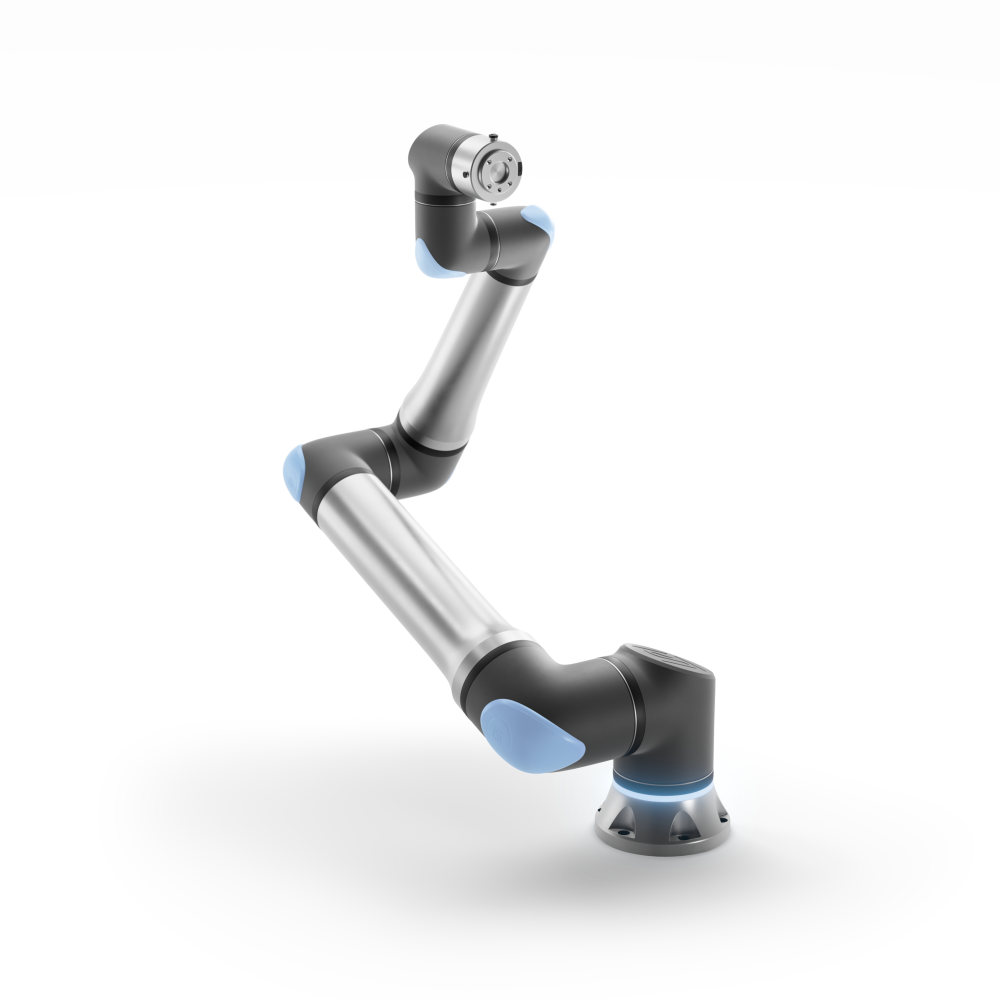

LED light ring
At-a-glance cell status via an LED light ring at the base of the robot.



SPECIFICATIONS

Maximum Payload: 17,5 kg
Reach: 1 300 mm
Pose Repeatability, per ISO 9283: ± 0.05mm
IP classification: IP 65
Weight including cable: 40,7 kg
Footprint: Ø 204 mm

Software: PolyScope X

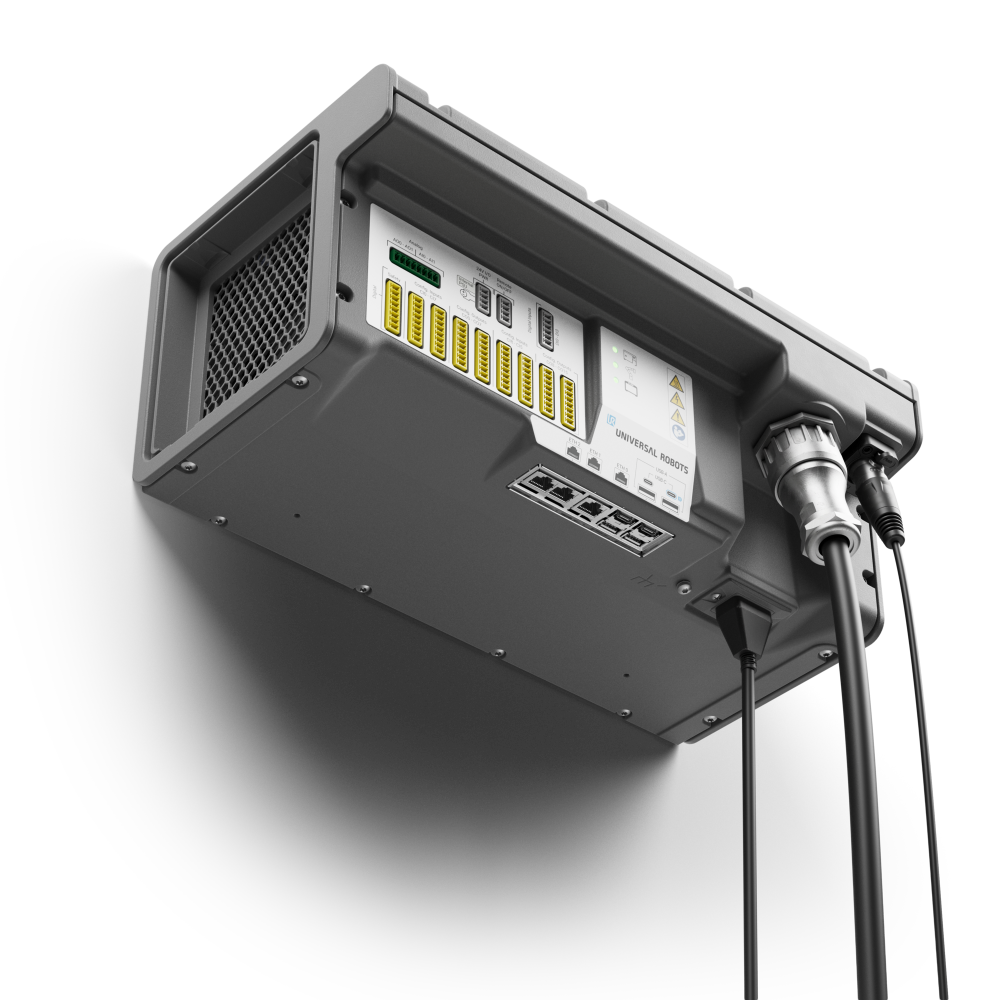

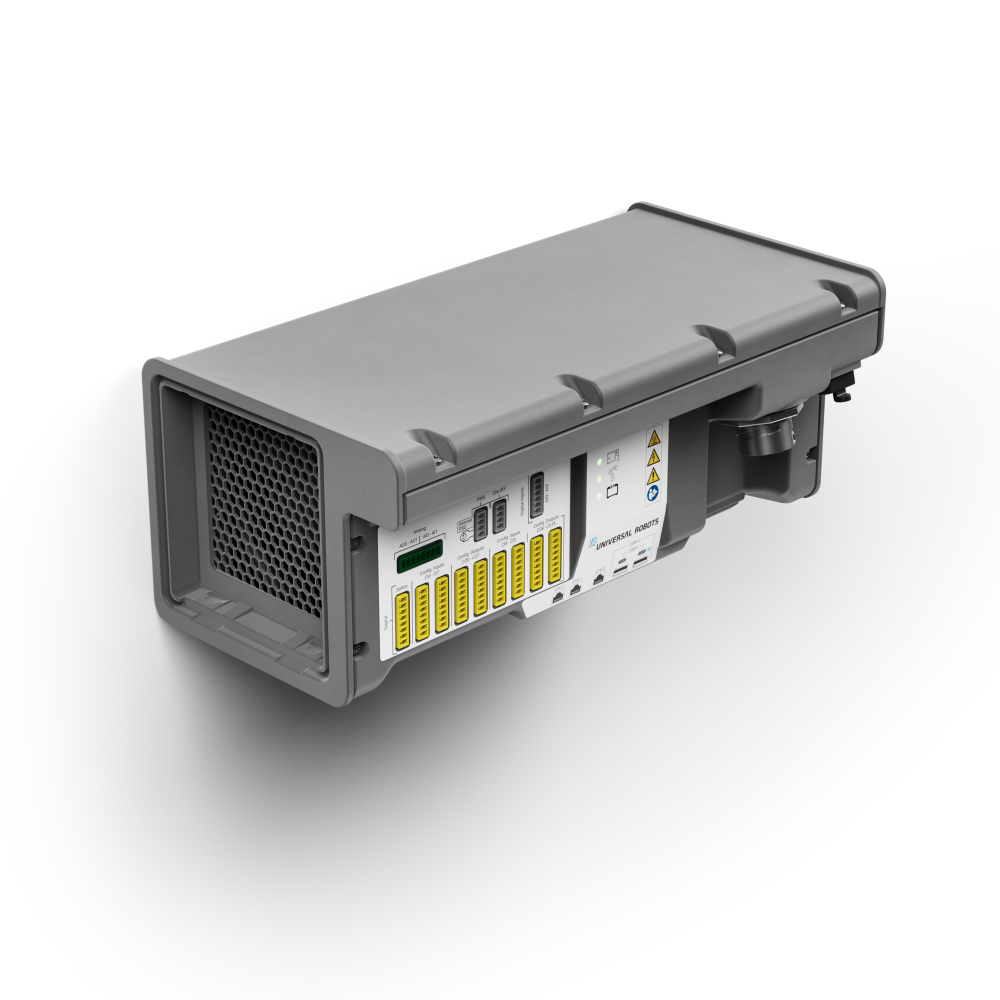

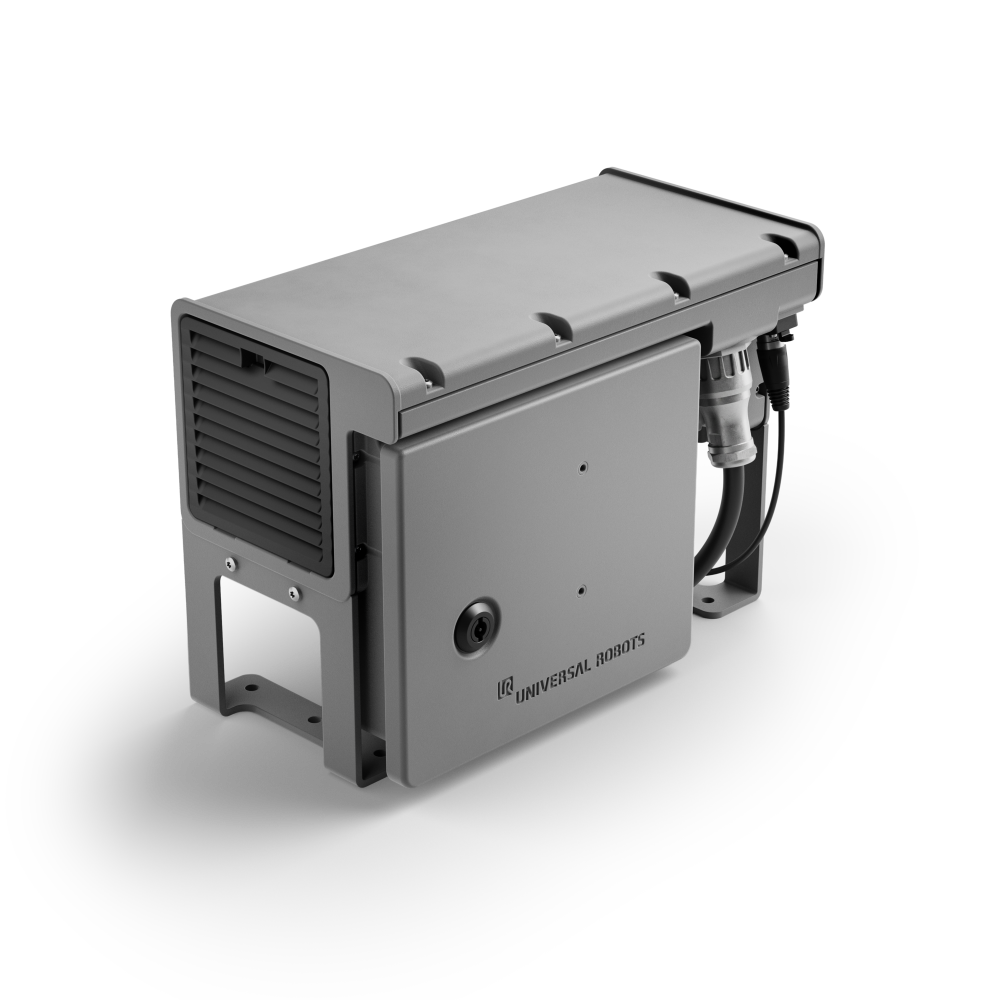

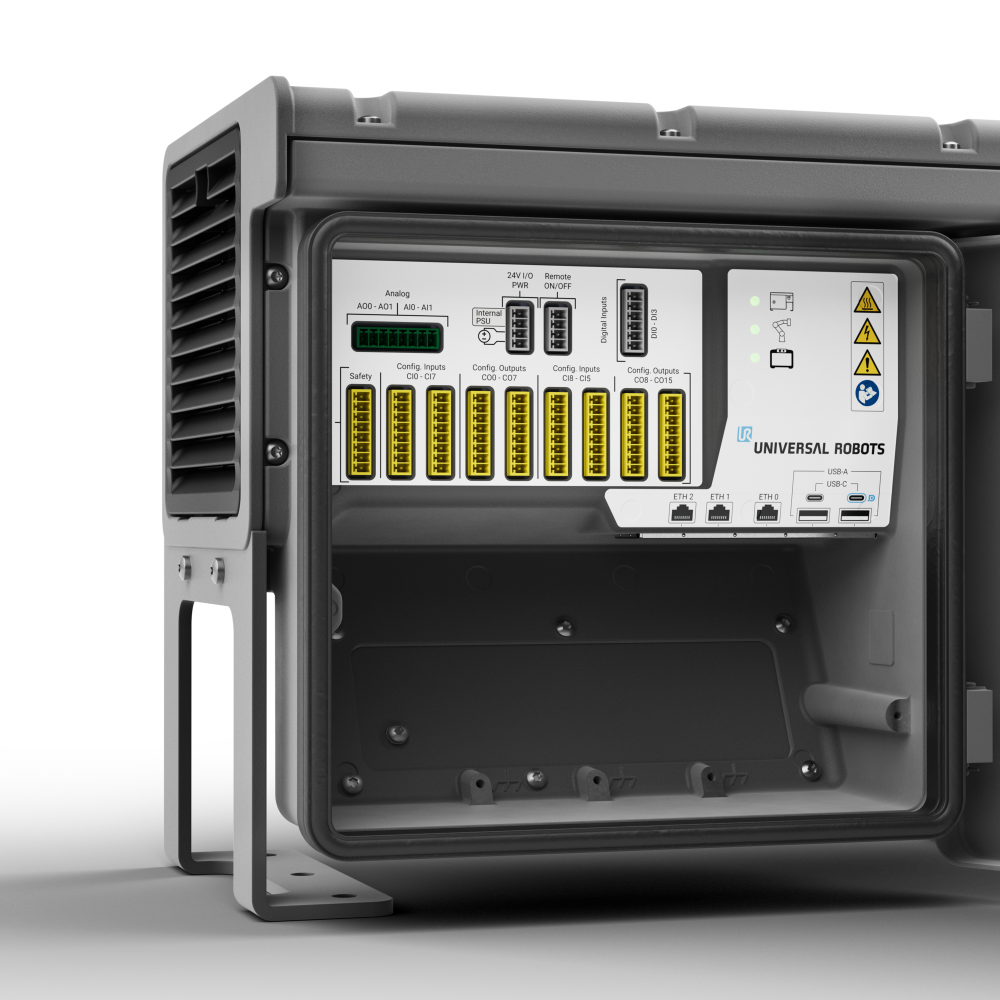

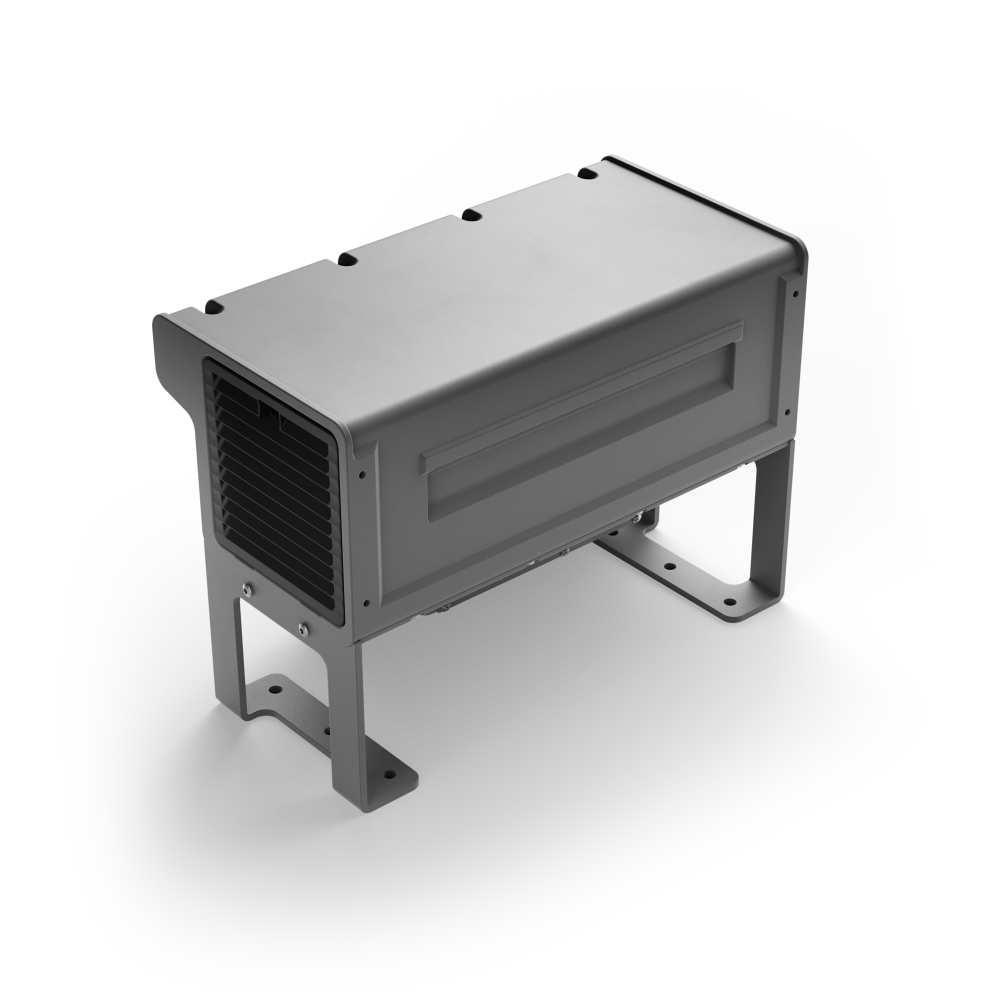

Controller: CB7

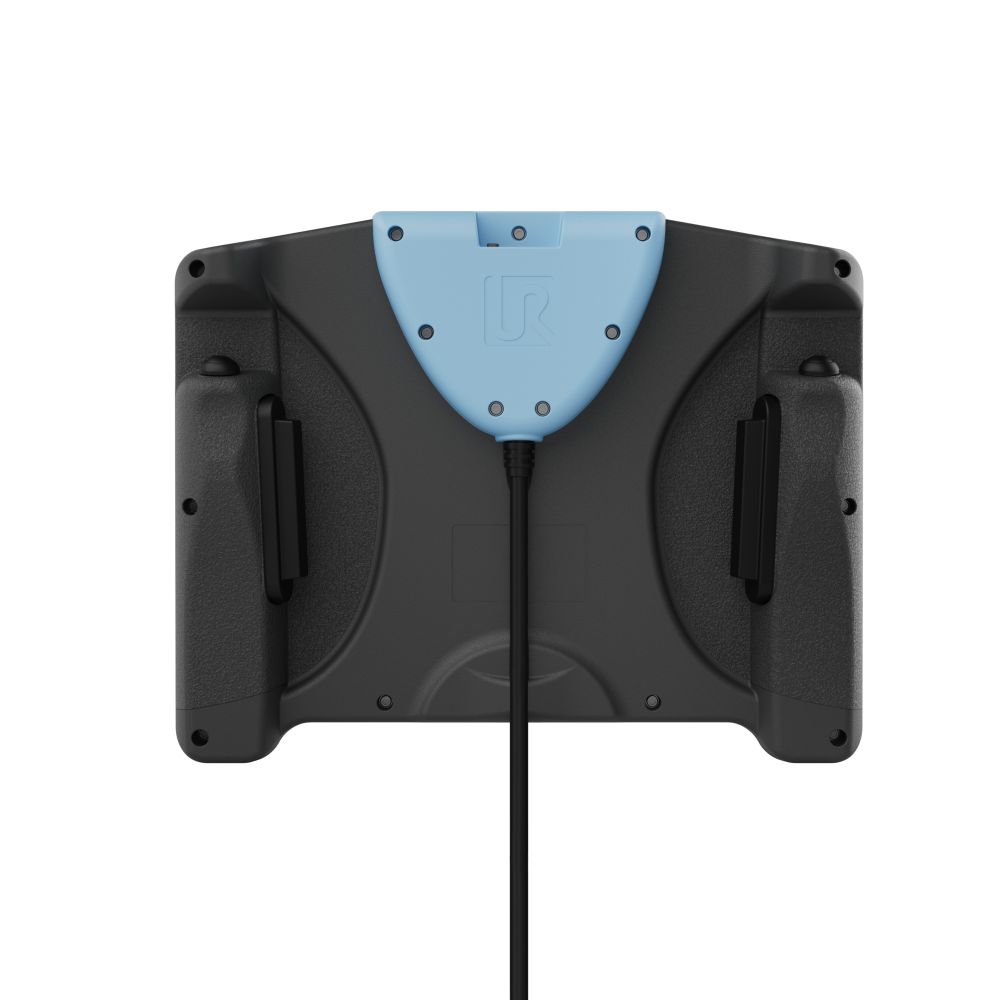

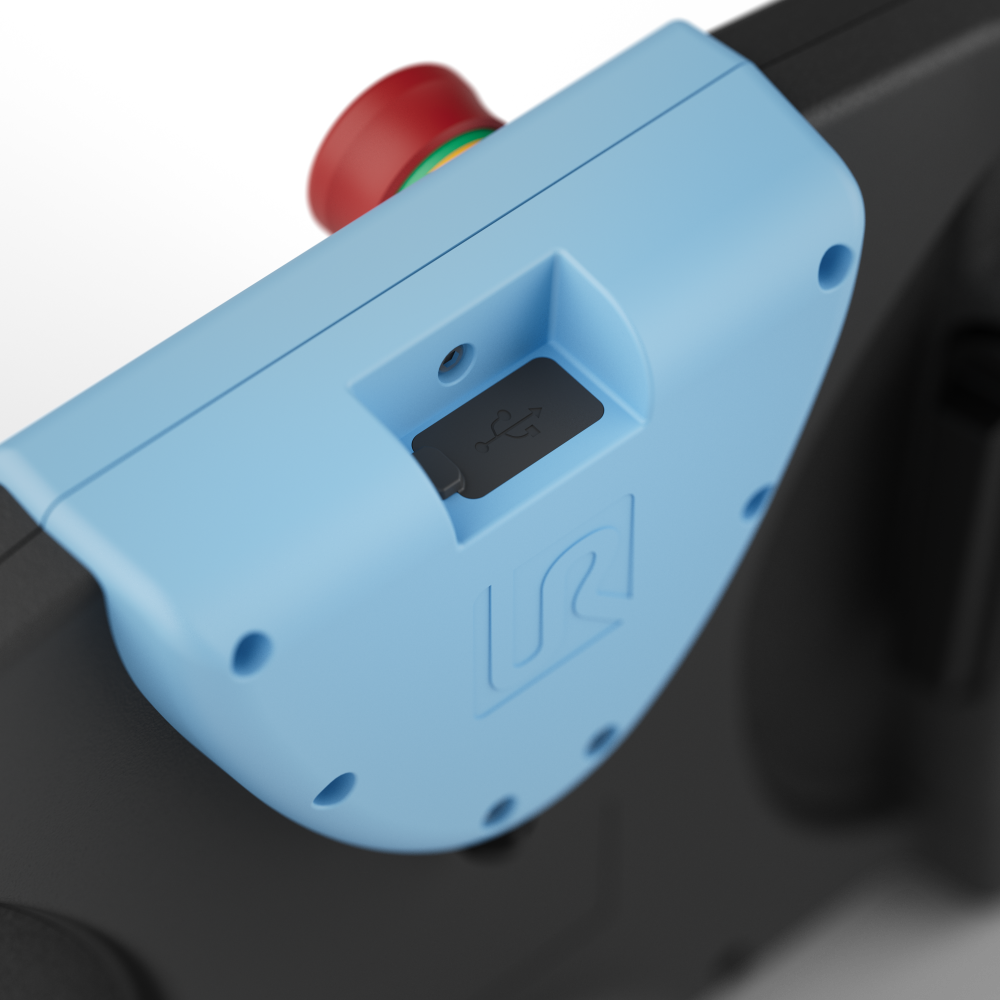

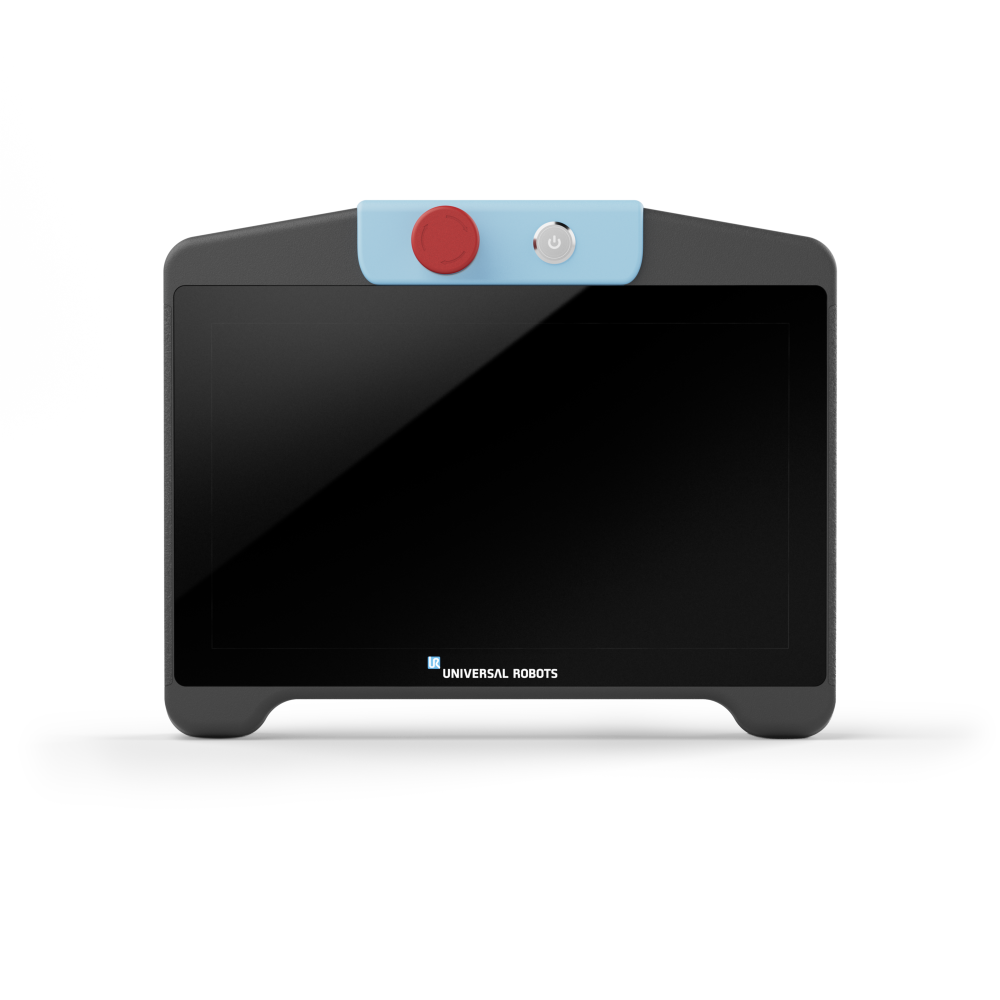

Teach Pendant: TP7

UR17g-1300

Core 6m, Core 12m, Core Compact 6m, Core Compact 12m, Core Compact W/O TP 6m, Core Compact W/O TP 12m
